? The basic components of the machine tool are made of special castings, and the bed and slide of the vertical machining center are used, so it has a high rigidity structure. The height of the worktable from the ground is also greatly reduced, which is convenient for workers to operate and load/unload workpieces.

? The guide rail and worktable are both quenched and ground, and the matching guide rail is coated with plastic. Automatic intermittent lubrication ensures smooth feed without crawling, and good accuracy retention.

? The X/Y axes of the machine tool are both driven by ball screws, and the connection between the motor and the screw is direct.

? The machine tool has powerful cutting, high flow cooling, and wide chip discharge grooves.

? Configure Guangzhou CNC 980MDI CNC system or Taiwan Advantech Baoyuan M5800 CNC system, with servo motor control for all three axes.

? The spindle box has a fully gear transmission structure, with a maximum torque of 350NM for the spindle. The spindle box can be manually moved up and down.

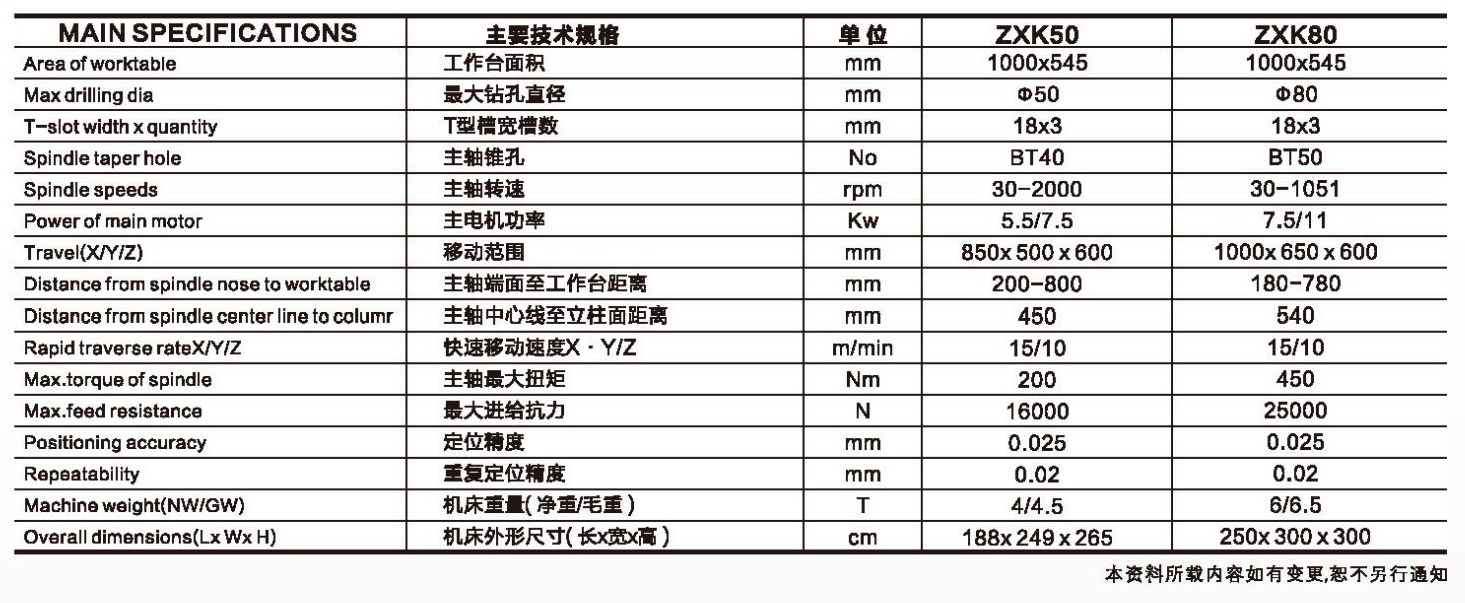

? ZXK50 and ZXK80 can be lightly milled and come with an optional tool magazine.
